Air dosing unit for biogas desulphurization size 40
up to about 1100 cubic meters of biogas per day, consisting of variable-flow display of up to 40 liters/min, linear air pump LA-45B, throttle valve, 2 ball valves with connection coupling for 20 mm PE high pressure air hose, 1 connection for condensate drain and for pipe rinsing. Incl. operating instructions in German. The vents must be equipped with a non-return valve!
Art. No.: 80361180

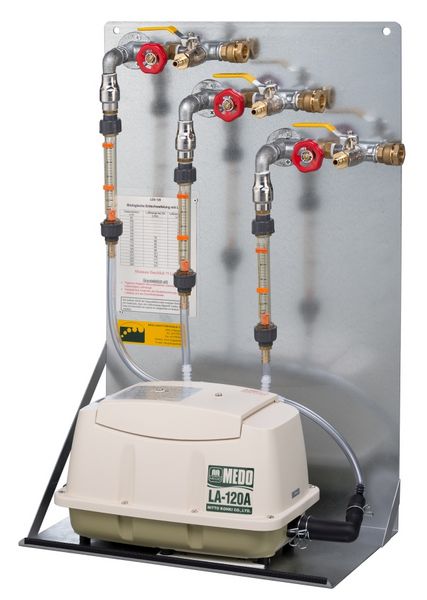

Air dosing unit for biogas desulphurization size 120
up to 3000 cubic meters of biogas per day, consisting of: 3 variable flow displays up to 120 liters/min, linear air pump LA-120B, 130W, throttle valve, 3 ball valves with connector for 20 mm PE-HD air hose, 3 connectors for condensate drain and pipe flushing. Incl. Operating instructions in German. The vents must be equipped with a non-return valve!
Art. No.: 80361350

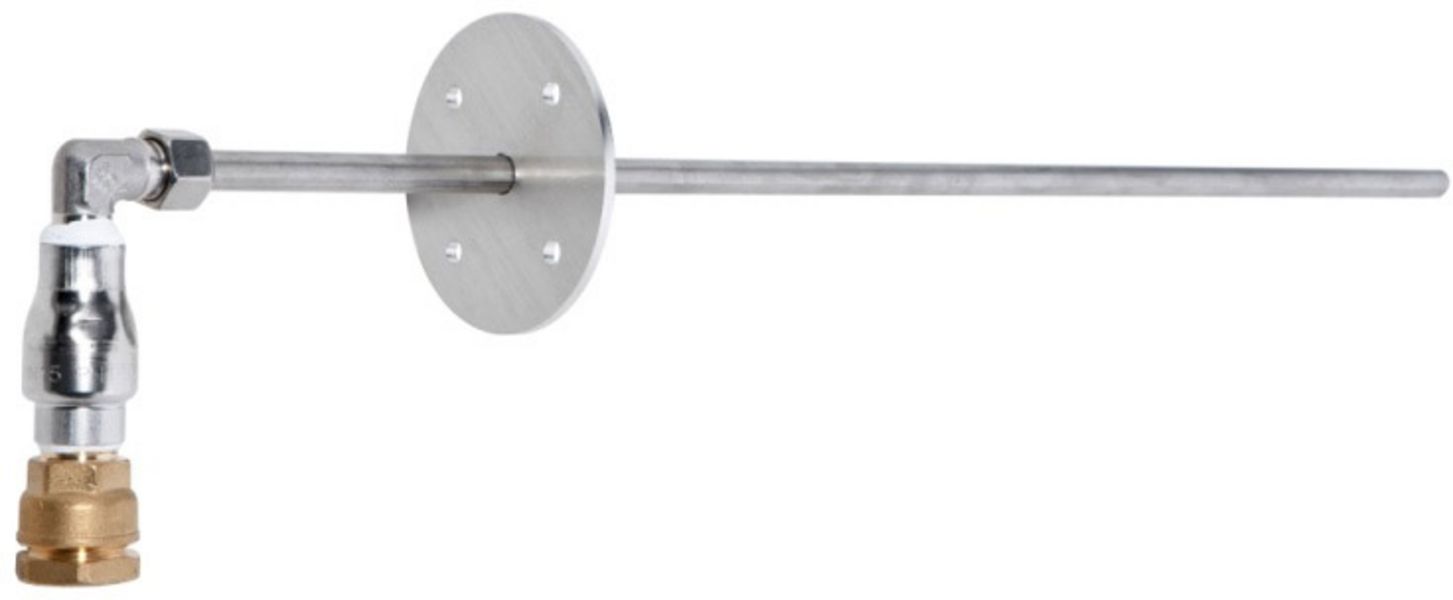

Air nozzle for desulphurization
Consisting of stainless steel tube 12 x 1 mm, 0.5 m, VA elbow for 20 mm PE-HD tube, with stainless steel non-return valve, with flange for sealing.
Art. No.: 80310000
