Over-pressure outflow pipe with flange

V2A DN 150 / DN 200 / DN 250 / DN 300, 2 m long. If required other lengths can be supplied.

Art. No.: 80 280 001 DN 150 2m
Art. No.: 80 280 011 DN 200 2m
Art. No.: 80 280 022 DN 250 2m
Art. No.: 80 280 032 DN 300 2m


Warnschilder ExZone 1+2 auf V2A-Trägerplatten

Komplett mit Rohrschellen DN 150 / DN 200 / DN 250 / DN 300.

Art.-Nr.: 80 240 006 DN 150
Art.-Nr.: 80 250 006 DN 200
Art.-Nr.: 80 260 006 DN 250
Art.-Nr.: 80 270 006 DN 300


Warning signs Ex INTERNATIONAL on 304-plates

Complete with clamp pipes DN 150 / DN 200 / DN 250 / DN 300.

Art. No.: 80 240 009 DN 150
Art. No.: 80 250 009 DN 200
Art. No.: 80 260 007 DN 250
Art. No.: 80 270 007 DN 300


Connection Tee for over-pressure and under-pressure ÜU TT in PE-HD

Polyethylen piping complete with 316 steel blind disc, gasket and screws. DIN flange PN10

Art. No.: 80 240 007 DN 150
Art. No.: 80 250 007 DN 200
Art. No.: 80 273 007 DN 250 (TT-273)
Art. No.: 80 273 507 DN 300


Connection Tee for over-, under-pressure valve ÜU TT 150 and 200 in stainless steel 316, 1.4571

Tee connection for over-, under-pressure ÜU TT 150 / 200 in V4A, complete with V4A dummy wafer, VA gasket and screws. V4A DIN flange DN 150 / DN 200 for direct connection of the valve, produced totally in VA.

Art. No.: 80 240 008 DN 150 150 for manholes DN or core
Art. No.: 80 250 008 DN 200 does not fit manhole DN 200, core hole must be prepared!


Gas valve, butterfly

EBRO stainless steel / NBR sealing rubber for gas.

Art. No.: 70 150 150 DN 150
Art. No.: 70 150 200 DN 200
Art. No.: 70 150 250 DN 250
Art. No.: 70 150 300 DN 300


Heater for ÜU TT

electric immersion heater TPAE, 200 W 220V 1Ph, Ex d II C T1 Ex II 2 GD,  with BROAE 87 connection box Ex d II C IP67

  • with automatic-thermostat 20°C, and safety limiter manual-reset  at 70° C,
  • material 1.4571, 316L,  6/4" screw on plug,
  • ATEX  Zone 1+2, temperatur class T1
  • - can be mounted subsequently to the TT on site -

Art. No.: 75 500 009 E

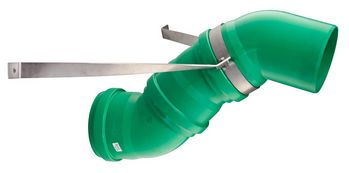

Gooseneck

for over-pressure and under-pressure ÜU TT 150/TT 200/TT 273, consisting of KG 2000-fit socket fittings to plug onto the connection tee inside the tank to prevent entry of substrate . Complete with stainless steel clamp and stainless steel V4A profile including fasteners.

Art. No.: 80 240 010 DN 150 for PE-HD Tee and 316 Tee
Art. No.: 80 250 010 DN 200 only for PE-HD Tee
Art. No.: 80 273 010 DN 250 only for PE-HD Tee


Overpressure sensor for ÜU TT 150/200/273/300

Sensor for trigging a signal at overpressure opening, consisting of stainless steel adapter DN 150/DN 200/DN 250/DN 300, mounting bracket and ATEX-proximity sensor with 2 m cable and seperate amplifier box  gasket and screws.

Art. No.: 80 240 011 DN 150
Art. No.: 80 250 011 DN 200
Art. No.: 80 273 011 DN 273
Art. No.: 80 273 511 DN 300


Underpressure sensor for ÜU TT 150/200/273/300

Sensor for trigging a signal at underpressure opening, consisting of stainless mounting bracket and ATEX-proximity sensor with 2 m cable and seperate amplifier box gasket and screws.

Art. No.: 80 240 025 DN 150
Art. No.: 80 250 013 DN 200
Art. No.: 80 273 013 DN 273
Art. No.: 80 273 013 DN 300
