Mounting brackets for the bulls eye

The matching length for the respective wall thickness.

The closer the bulls eye is installed at the inside wall, the bigger is the visual angle.

B=A-C-40mm

C= ca. 20mm

Length B for Installation in concrete wall

31 cm, Art.-No.: 80 100 141
25 cm, Art.-No.: 80 100 118
20 cm, Art.-No.: 80 100 136
14 cm, Art.-No.: 80 100 104
12 cm, Art.-No.: 80 100 124

For Installation in pipe

14 cm, Art.-No.: 80 100 117
3 cm, Art.-No.: 80 100 126

Strengthened for high internal pressure:
for DRÖSSLER Sandwich-wall:

25 cm, Art.-No.: 80 100 140
12 cm, Art.-No.: 80 100 123

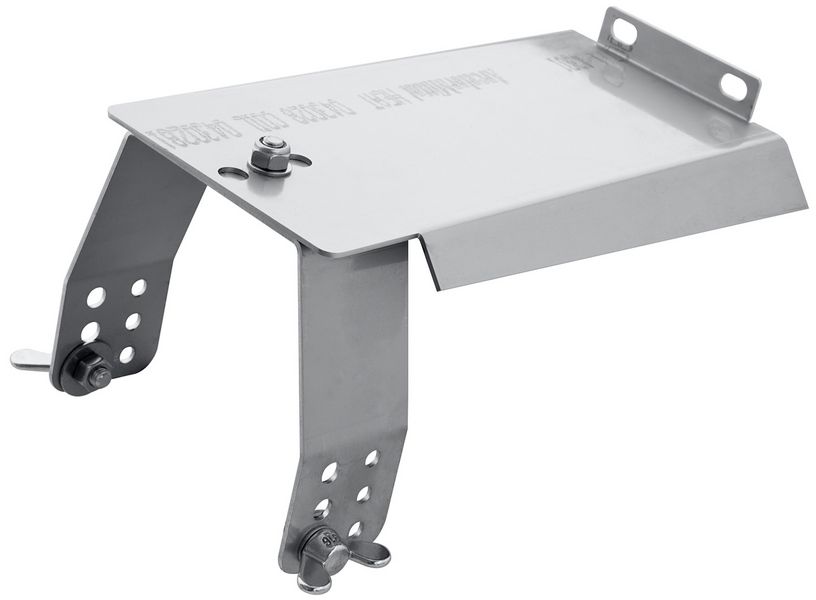

Gimbal lamp holder

Gimbal lamp holder for 2-axis movement, bolted directly to the bulls eye, for optimum handling of the EX-light for RD 300 / RD 400 bulls eyes

Art.-No.: 80 110 100

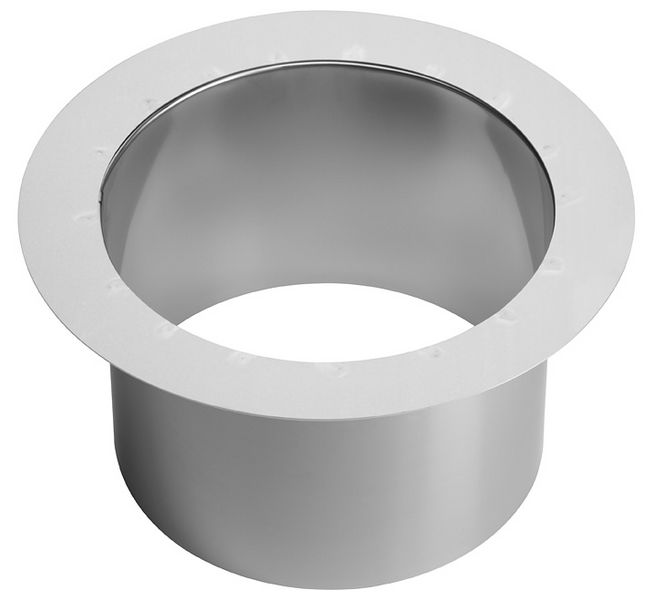

Rosette

Stainless steel 304 rosette for a clean finish to the tank cladding.
Length 20 cm, collar 5 cm . Attachment and eventual shortening on site.

Art.-No.: 80 120 010 RD 300
Art.-No.: 80 120 011 RD 400

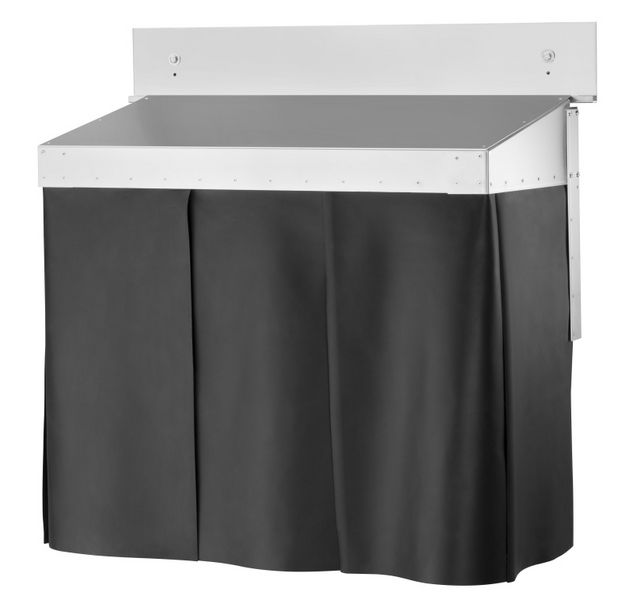

Sun protection cover

Sun protective cover on the tank wall as a darkroom for better viewing through the bulls eye.
58 x 58 x 114 cm, 2 mm aluminium sheet, including fixing gutter attachment on site.

Art.-No.: 80 125 000
